MODEL LIGHTING SOLUTIONS

"PLUG-IT"


No soldering necessary when you use our plug, socket and wire connecting system. This system includes Power Supply, Connecting Leads and Switches. Simply use these elements to connect from the power source to each lamp or signal. All elements are interchangeable so can be used in any order.

The On-Off Switch and Dimmer Switch are optional. Adding On-Off or Dimmer Switches can control a whole system, a selection of lights or individual lights depending on where connected.

A mixture of lights and signals can be included.

Use On-On Switches to control Colour Light Signals

The "PLUG-IT" lead supplied with the Power Transformer has a socket which is intended to mount on a baseboard. The lead attached to this  is the start from which a lighting system can be developed. The Power Transformer lead plugs into this socket and allows disconnection if required.

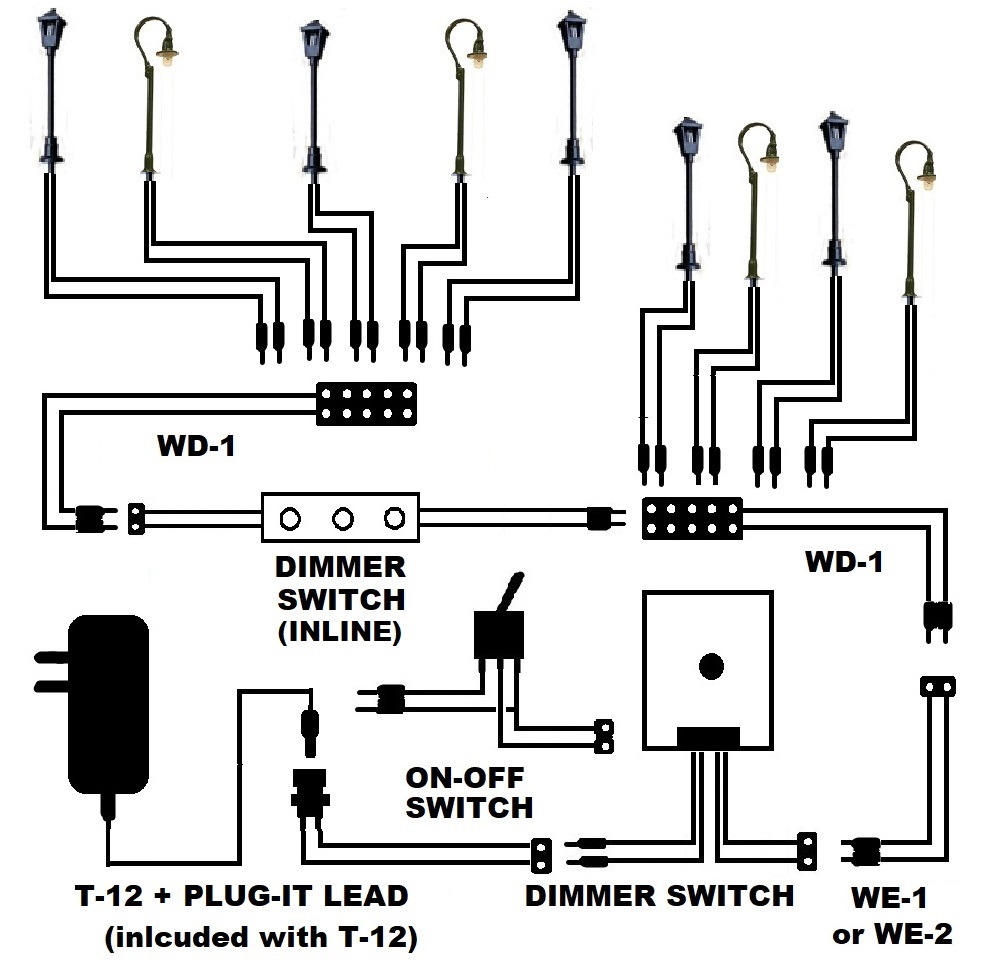

The below diagrams illustrate a typical nine light system and signal wiring . This is expandable with more WD-1 Distribution Leads. These and light leads can be extended with WE-1 and WE-2 Extension Leads. NB: The wires attached to lights an signals are typically 15cm long.


 "Plug-it" basic wiring diagrams (see below for the "Plug-it" wiring elements)




Use these "Plug-it" elements to create your own lighting system

 Connecting Plug and Sleeve (x10)
2.99
Individual Plug and Sleeve as used on our "Plug-It" System. These can be soldered to any wire to convert non-Plug-It accessories or for alternative uses.



2-Wire Connecting Lead with Plug Only (x2)
3.49
Fitted with a twin plug at one end and pre-soldered bare wires at the other to connect wires without fitted plugs to the "Plug-It" System


2-Wire Connecting Lead with Socket Only (x2)
3.49
Fitted with a twin socket at one end and pre-soldered bare wires at the other to connect wires without fitted sockets to the "Plug-It" System


2-Wire Connecting Plug and Socket (x10)
8.99
2-wire Plugs and Sockets as used on our "Plug-It" System. These can be soldered to any two wires to convert non-Plug-It accessories or for alternative uses.


2-Wire Long Extension Lead
2.99
Use to increase the distance between a light and the Distribution Lead socket, or between Distribution Lead sockets
2-Wire Power Supply Connecting Lead
3.99
Fitted with a panel mount socket and a  "Plug-It" System socket
2-Wire Short Extension Lead (x2)
3.99
Use to increase the distance between a light and the Distribution Lead socket, or between Distribution Lead sockets
3-Wire Short Extension Lead (x2)
3.99
Use to increase the distance between a light and the Distribution Lead socket
5-way Distribution Lead
3.99
Allows up to 5 lights to be connected to one supply lead.
